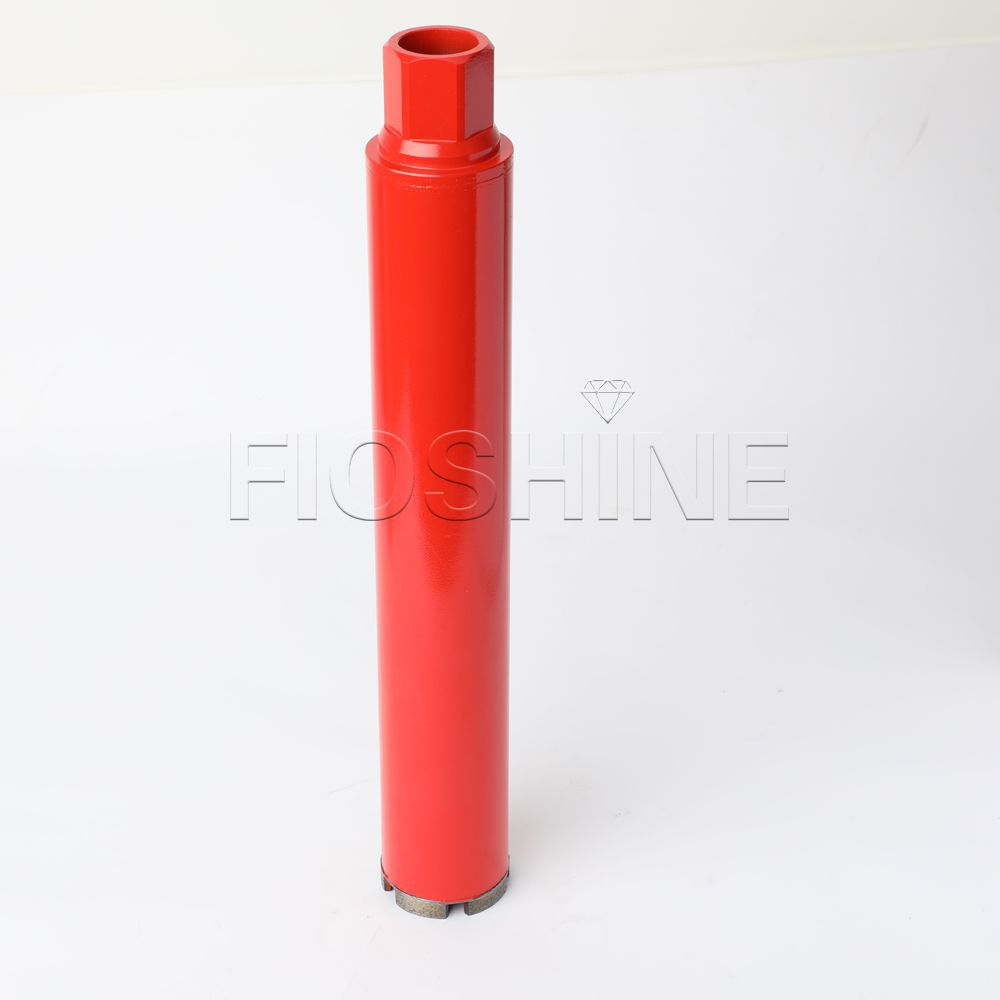

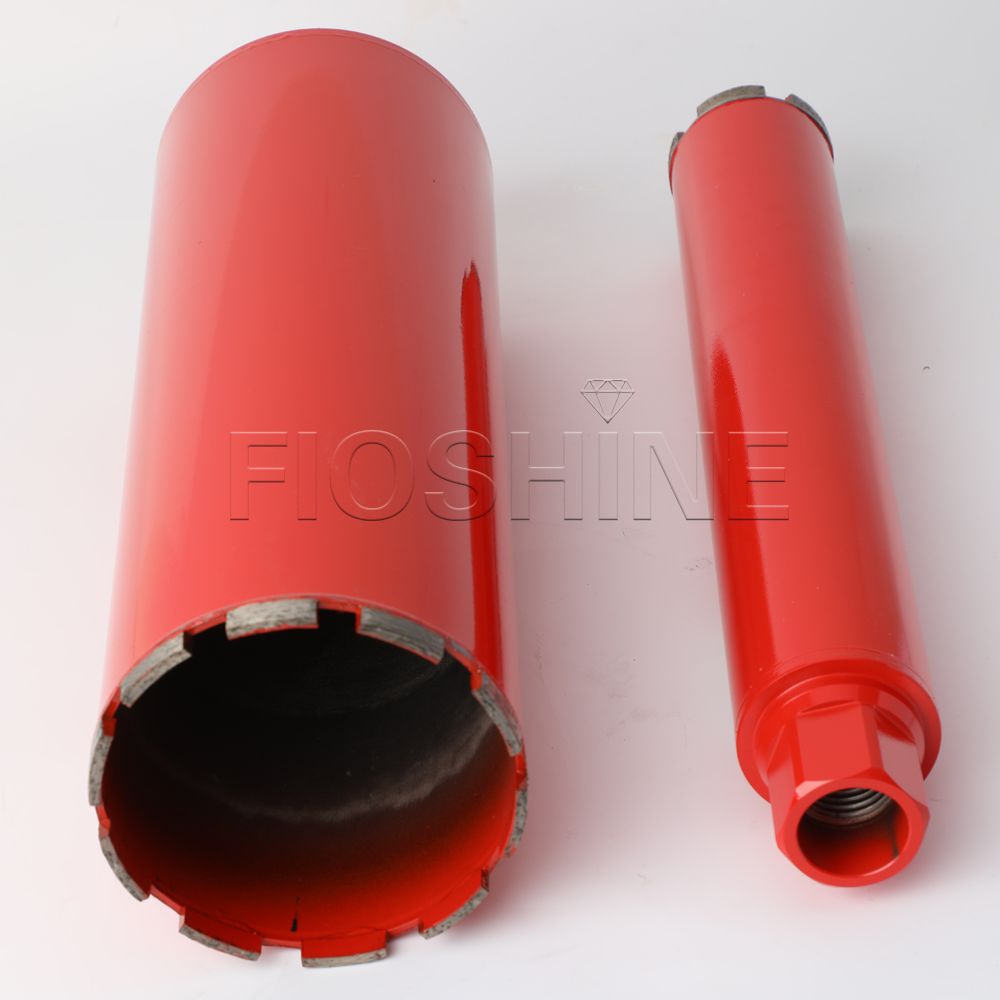

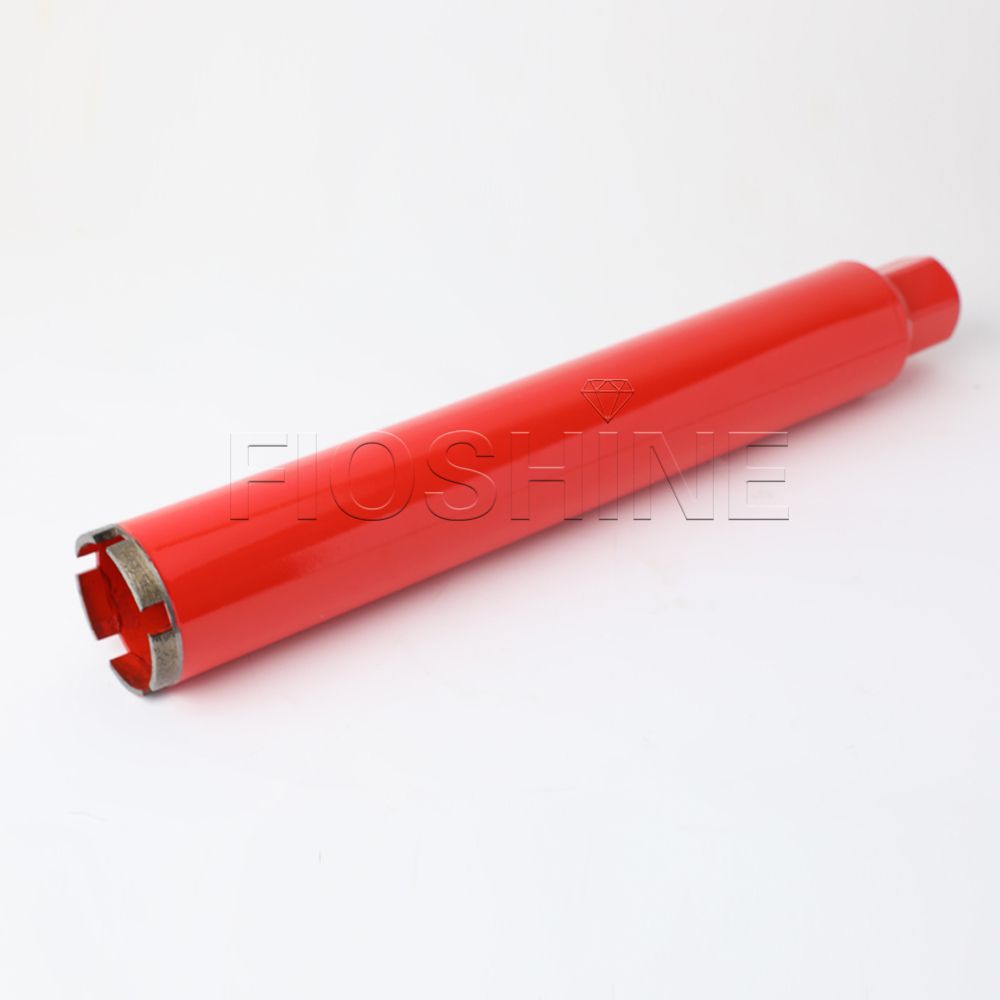

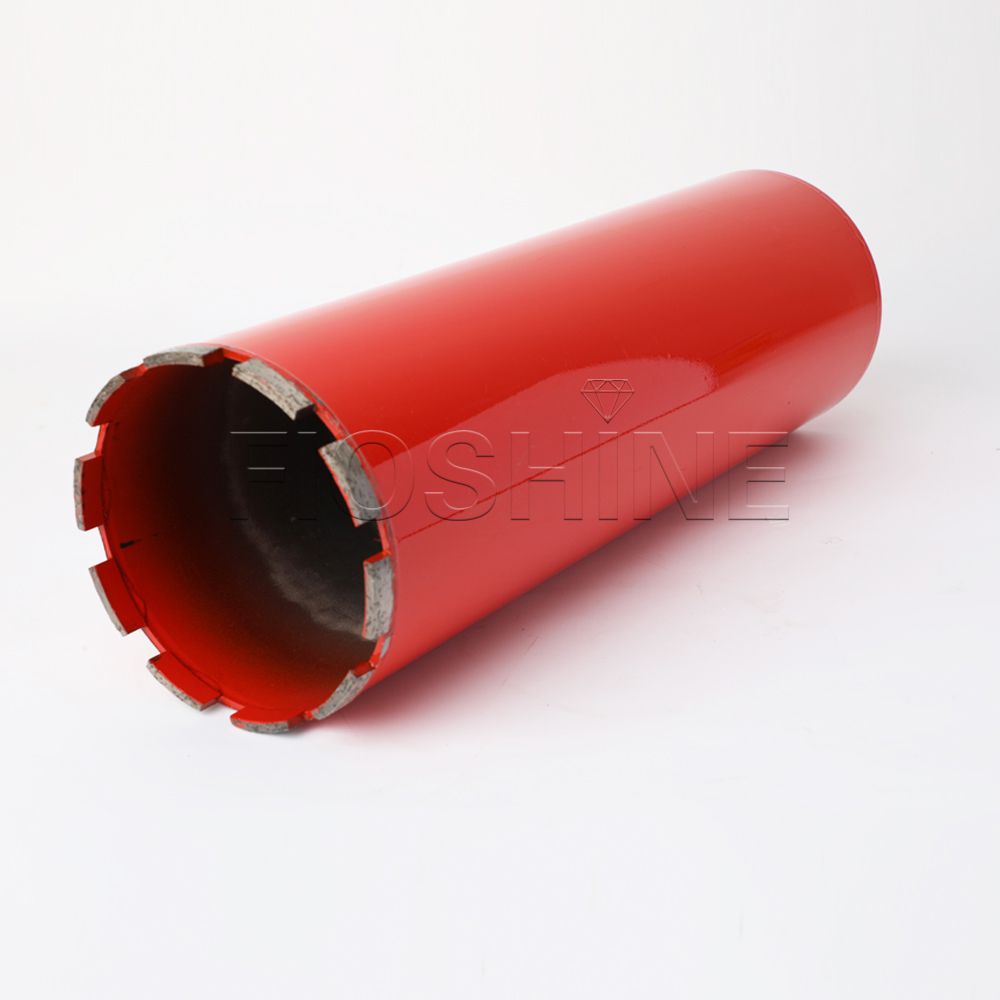

Laser Welded wet diamond core drills are expertly produced to core drilling on a full range of materials for Concrete, Reinforced Concrete, Asphalt, Block, Pavement, Brick, etc.
High quality diamond grit and high quality metal bond enable a highest level of drilling performance and excellent longevity.
A great application span across a wide range of applications from hard to general purposes materials in wet use.
Connection types/working length/segments can be customized on request.
Advantages&Features
Laser welded-High welding strength ensure a safety drilling.
High quality diamond segments enable a highest level of drilling performance and excellent longevity.
A great application on a full range of materials from Concrete, Reinforced Concrete, Asphalt, Block, Pavement, Brick, etc.
Connection types/working length/segments can be customized on request.
Application
Wet Drilling Concrete, Reinforced Concrete, Asphalt, Brick, Block & Masonry Materials.
Fit Onto Handheld Core Drill & Core Drill Stand
Product Parameter
| Item No. | Diameter | Segment Height | Connection | Working Length |
| FSDLW012 | 12.7mm | 10mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW025 | 25mm | 10mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW032 | 32mm | 10mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW036 | 36mm | 10mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW038 | 38mm | 10mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW042 | 42mm | 10mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW051 | 51mm | 10mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW056 | 56mm | 10mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW063 | 63mm | 10mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW072 | 72mm | 10mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW076 | 76mm | 10mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW082 | 82mm | 10mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW089 | 89mm | 10mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW102 | 102mm | 10mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW108 | 108mm | 10mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW114 | 114mm | 10mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW127 | 127mm | 10mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW132 | 132mm | 10mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW142 | 142mm | 10mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW152 | 152mm | 10mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW162 | 162mm | 10mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW172 | 172mm | 10mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW180 | 180mm | 10mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW200 | 200mm | 10mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW228 | 228mm | 12mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW254 | 254mm | 12mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW280 | 280mm | 12mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW305 | 305mm | 12mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW330 | 330mm | 12mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW356 | 356mm | 12mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW406 | 406mm | 12mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW457 | 457mm | 12mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
| FSDLW508 | 508mm | 12mm | 1 1/4''UNC-7, 1/2BSP | 350mm/450mm |
Related Products

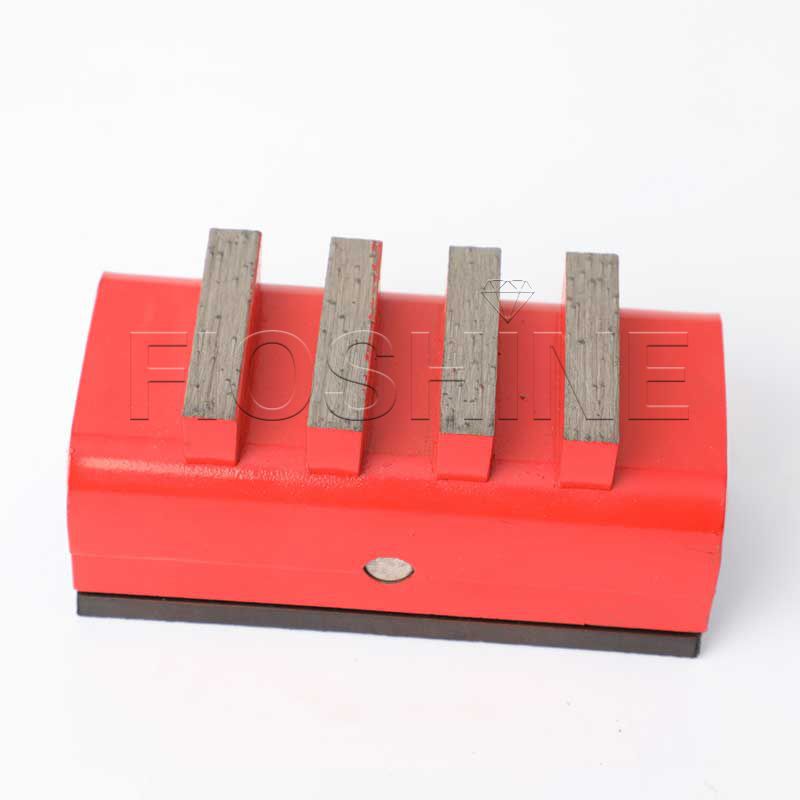

Featuring a medium bond and high-quality diamond segments, our diamond grinding blocks fit onto EDCO and other floor grinders for grinding block

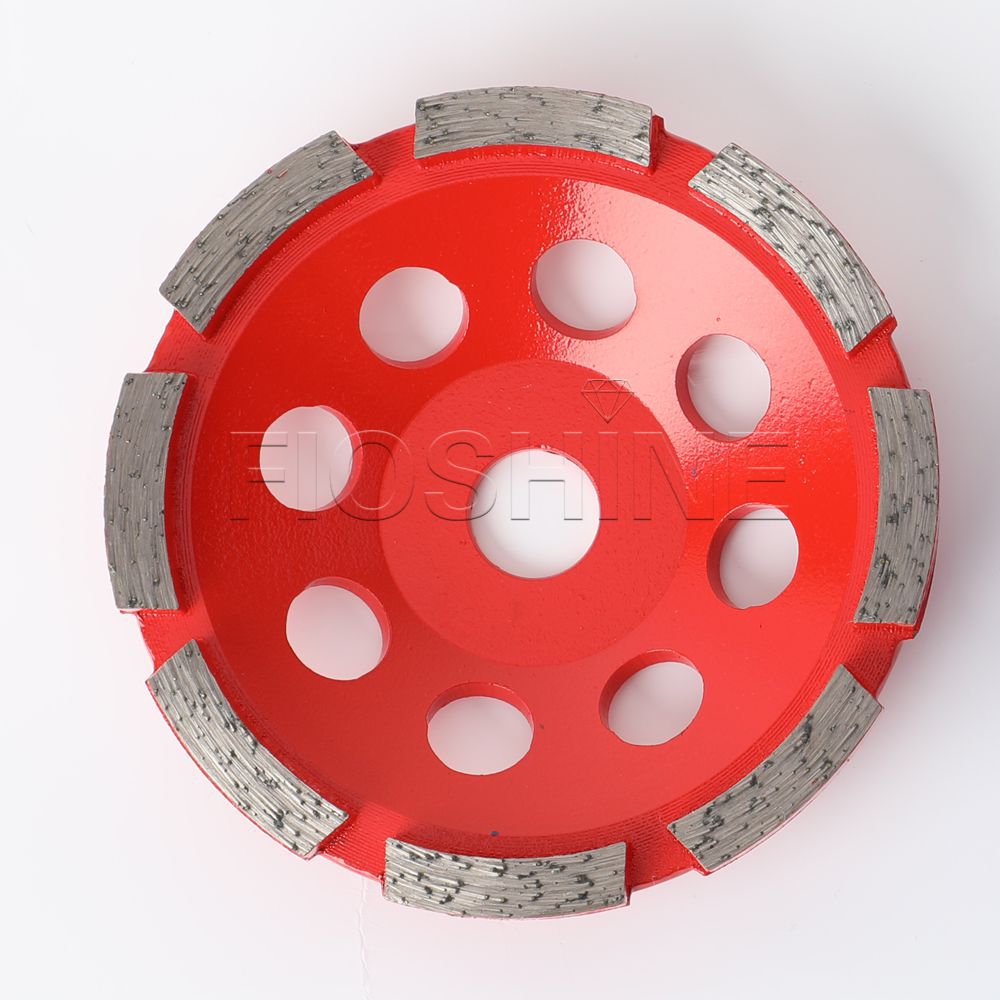

Single row diamond cup wheels are classic style of diamond grinding cup wheel, which are engineered with top grade industrial diamond for maximum grinding performance and superior tool life.

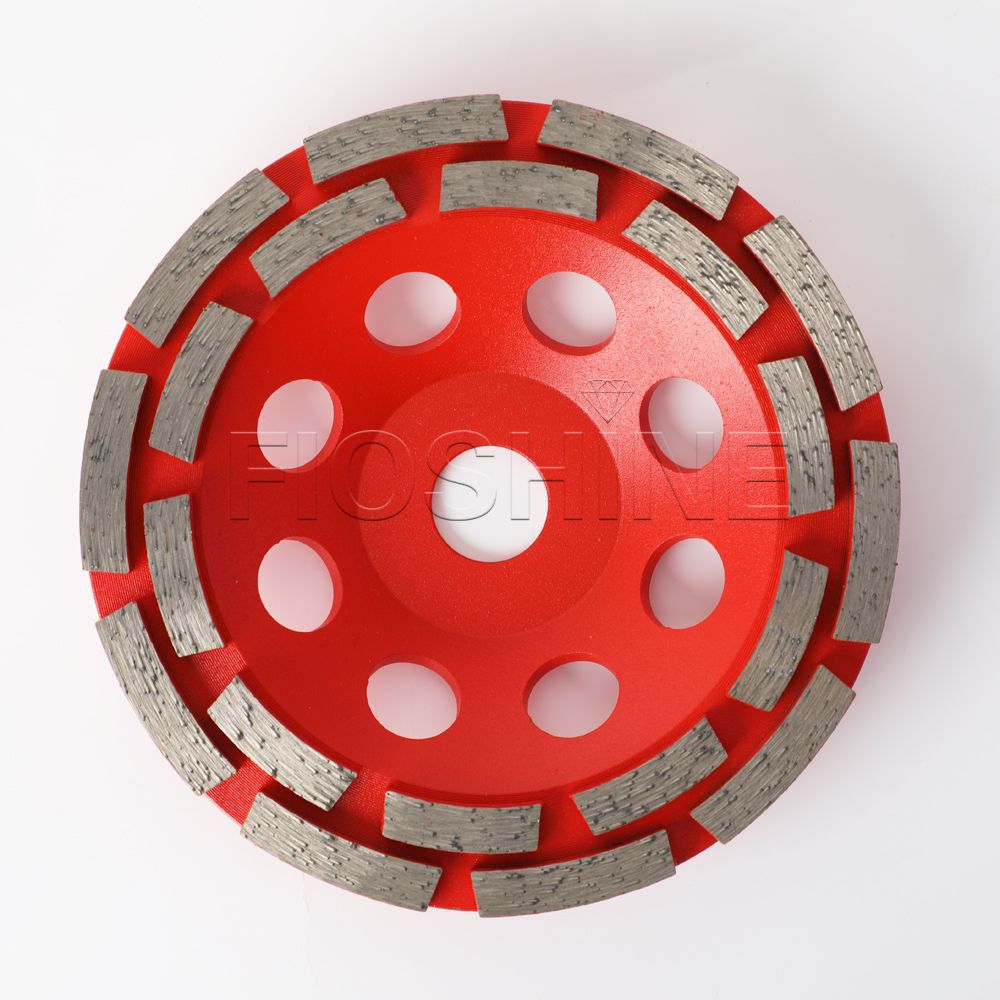

Popular double row design provides aggressive and quick material removal and creates a smoother, more polished finish.

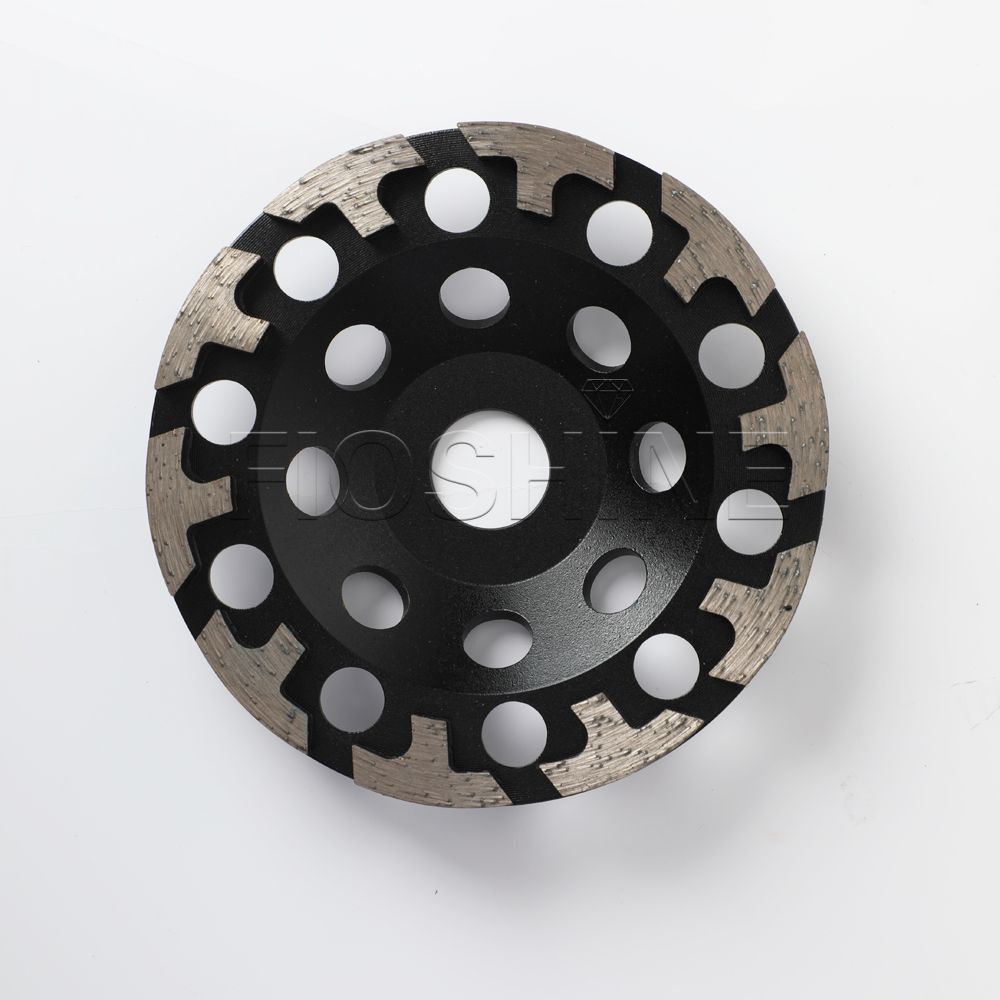

T segment cup wheels give you fast and aggressive grinding on concrete and masonry with excellent performance and extralong tool life.
Light Weight Diamond Cup Wheel
This type of diamond cup wheels is designed for fast and fine surface grinding on different kinds of concrete with light steel core.

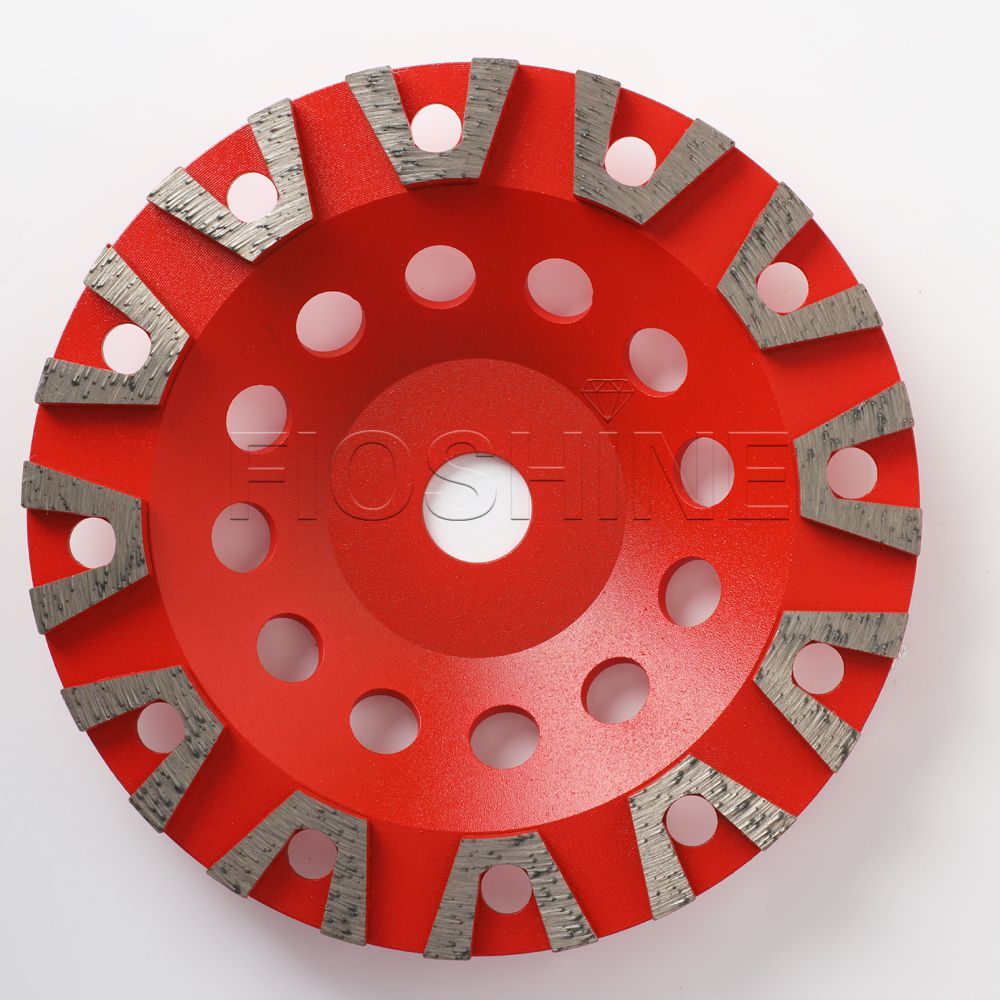

Special designed U segments provides very fast grinding on concrete and other masonry materials.

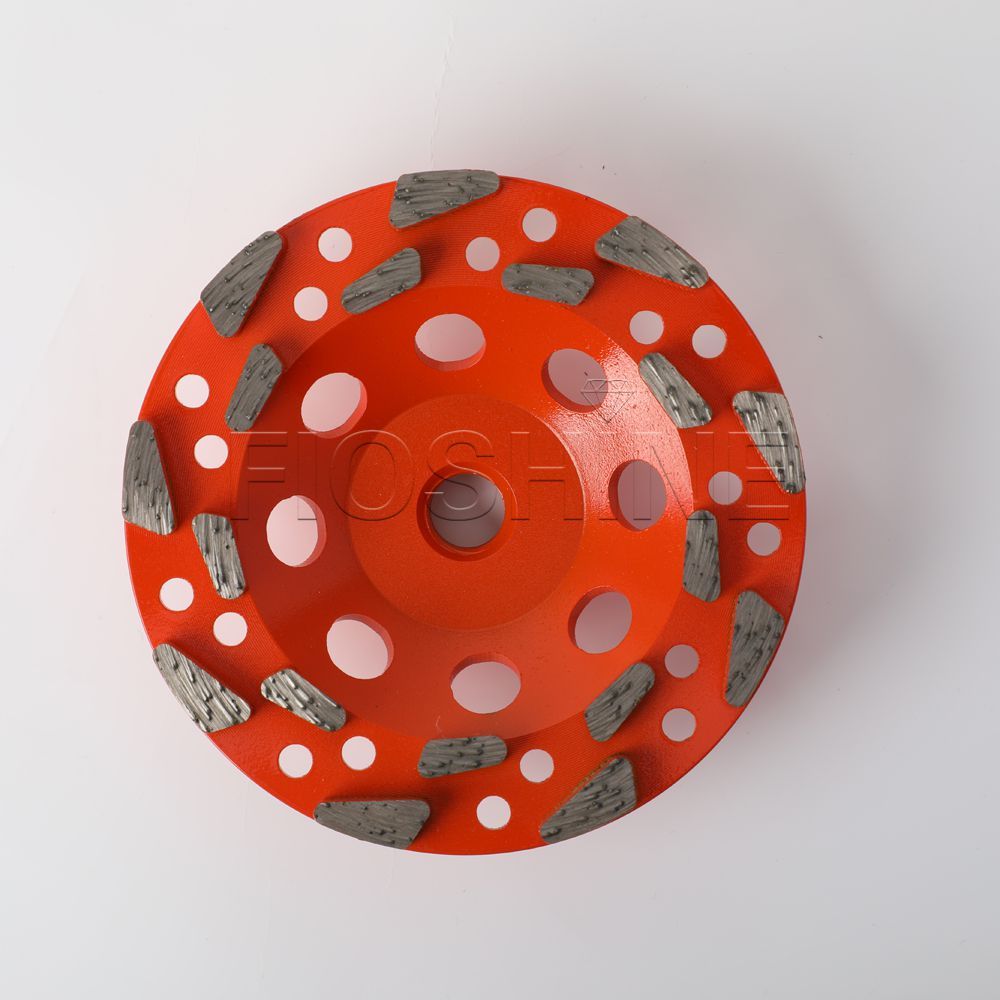

Tear Drop Cup Wheels are a very aggressive cup wheel designed for concrete removal and floor preparation.
Bar Segment Diamond Grinding Disc

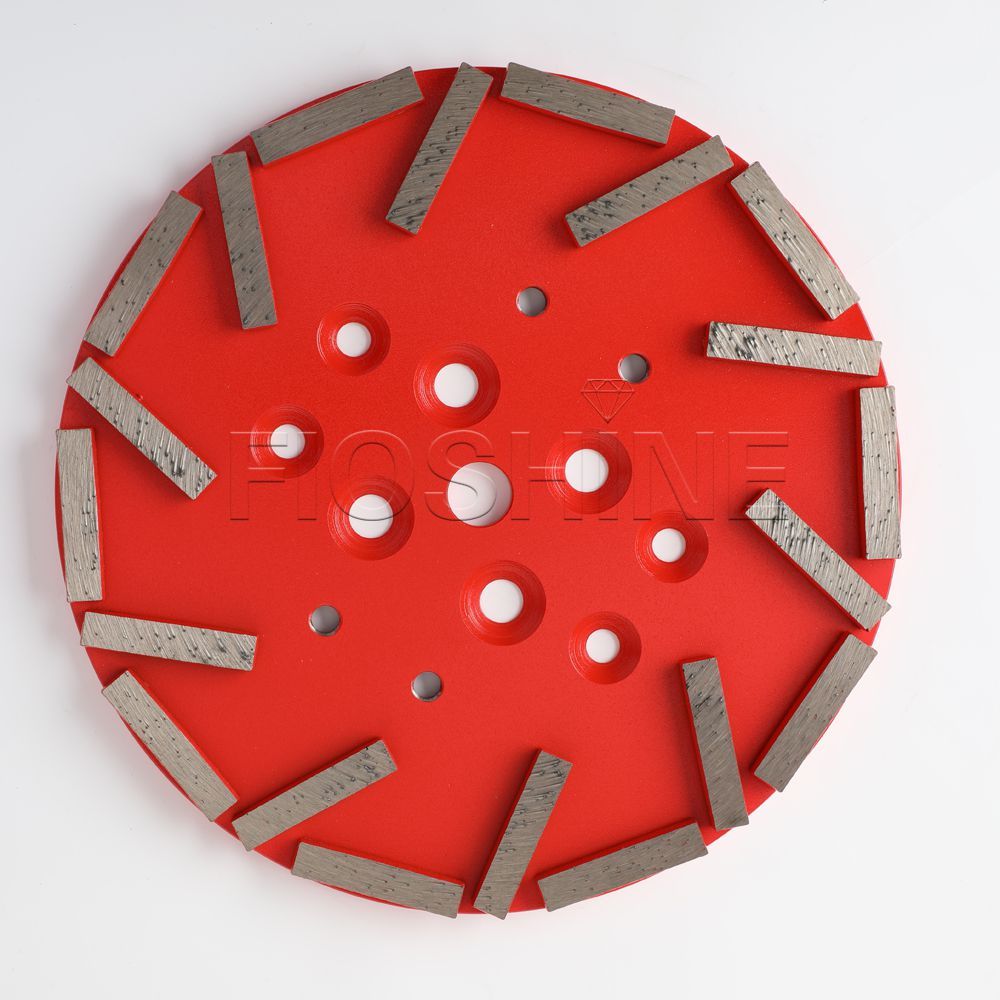

250mm bar segments diamond grinding disc features high grade diamonds and high density diamond for optimum grinding performance and excellent longevity.
