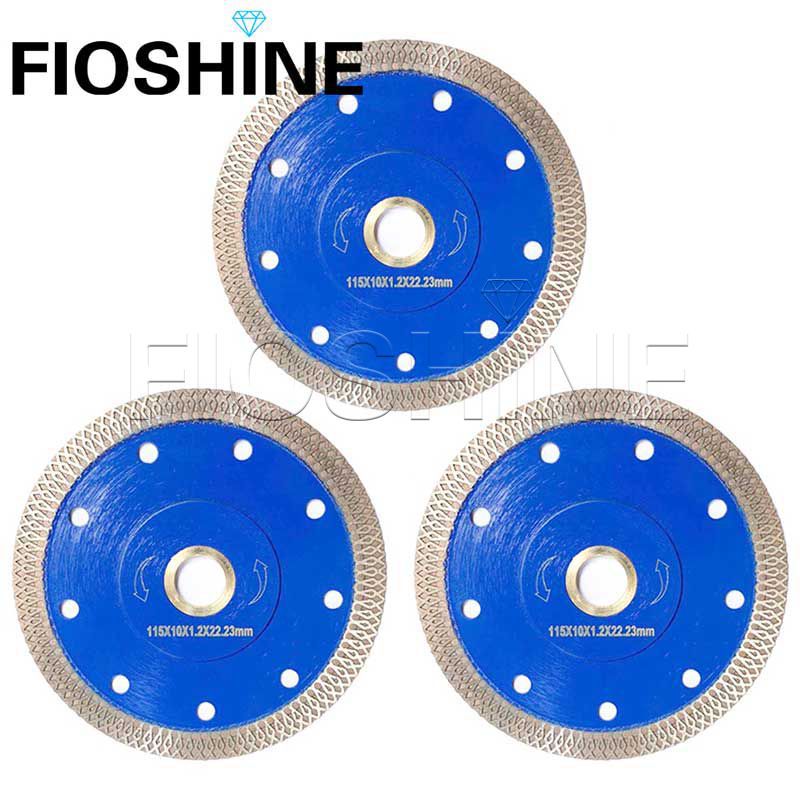

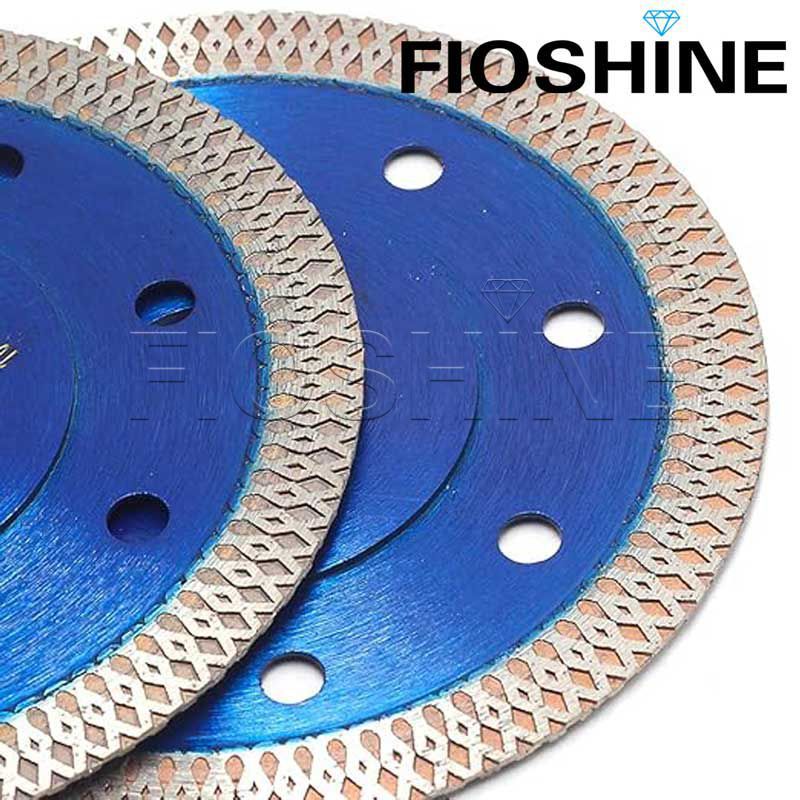

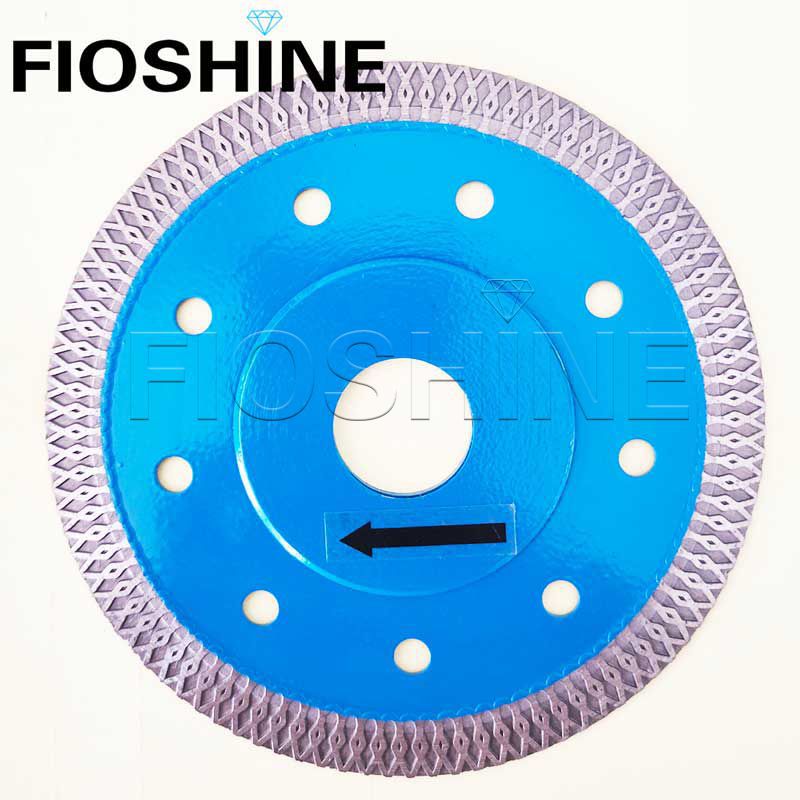

This super thin tile cutting blade features 1.2mm segments thickness and Turbo MeshX segments, provides fast, smoothing, clean cutting with superior efficiency.
High quality diamonds, high diamond concentration and advanced sinter hot-pressing technology provide longer service life
Designed professionally for cutting hard tile, ceramic tile, porcelain, granite tile...etc.
Advantages&Features
Super thin Turbo Mesh segments offer a fast, smooth and clean cutting
High quality diamonds, high diamond concentration-fast cutting with long service life.
Idea for cutting hard tile, ceramic tile, porcelain, granite tile.
Wet and dry use. No Vibration
Application:
Fast Cut Hard Tile, Ceramic Tile, Porcelain, Granite Tile.
Fit Onto Angle Grinders, Circular Saws, Tile Saws.
Product Parameter
Specification:
| Item No. | Diameter | Segment Height | Segment Thickness | Arbor |
| FSBCT105 | 4''/105mm | 10mm | 1.2mm | 20/22.23mm |
| FSBCT115 | 4 1/2''/115mm | 10mm | 1.2mm | 20/22.23mm |
| FSBCT125 | 5''/125mm | 10mm | 1.2mm | 22.23mm |
| FSBCT150 | 6''/150mm | 10mm | 1.4mm | 22.23mm |
| FSBCT180 | 7''/180mm | 10mm | 1.6mm | 22.23mm |
| FSBCT200 | 8''/200mm | 10mm | 1.8mm | 22.23mm |
