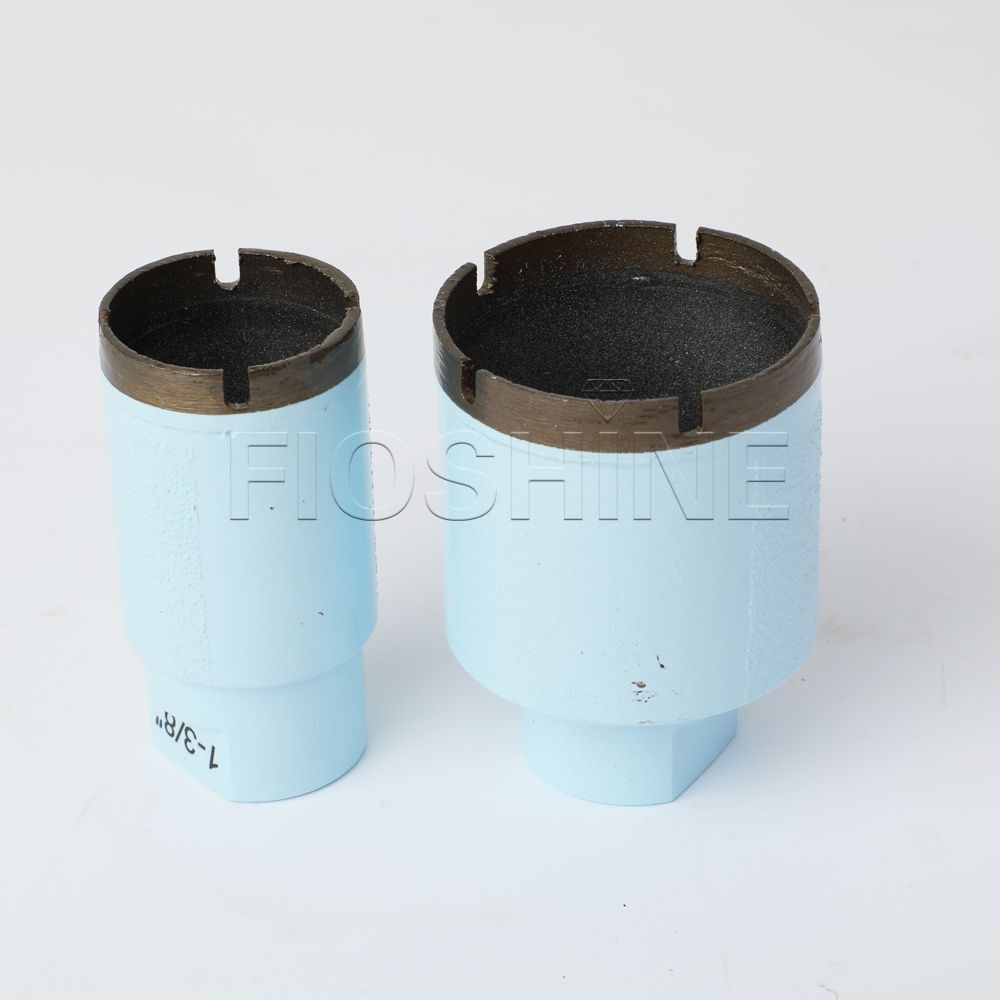

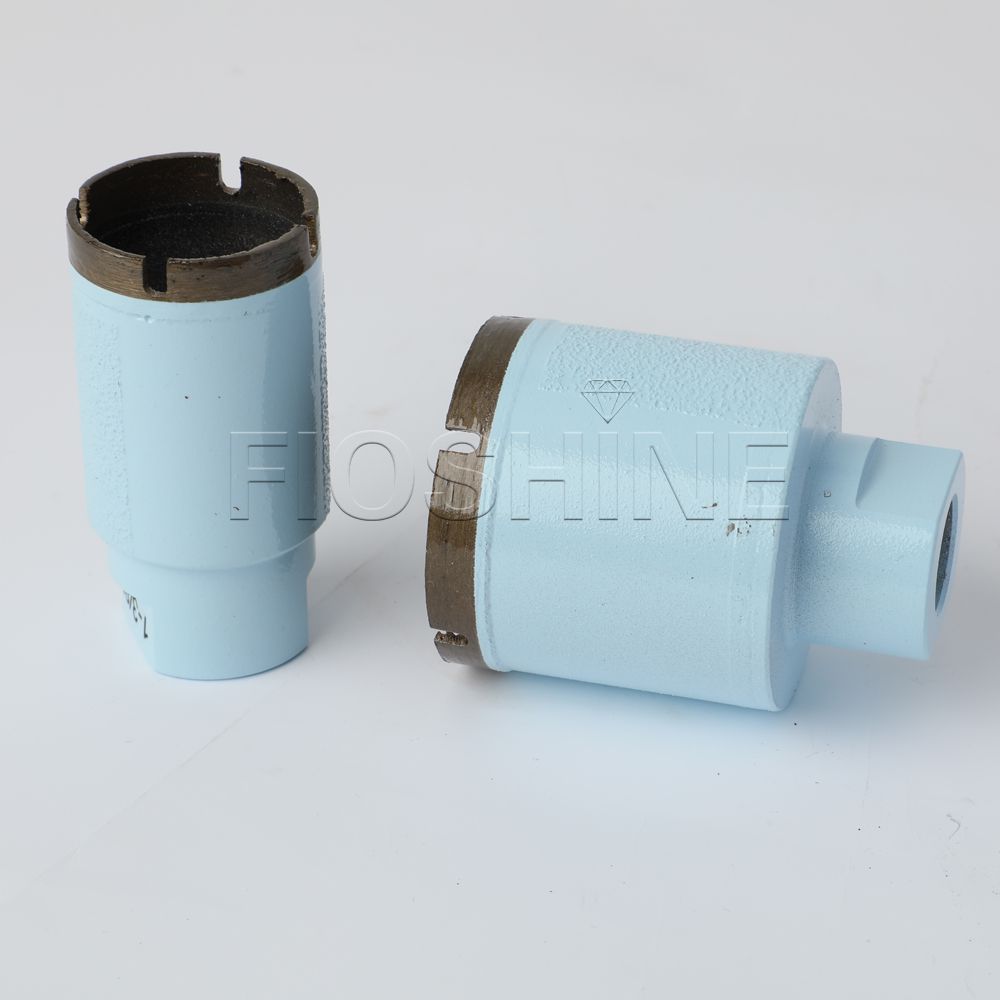

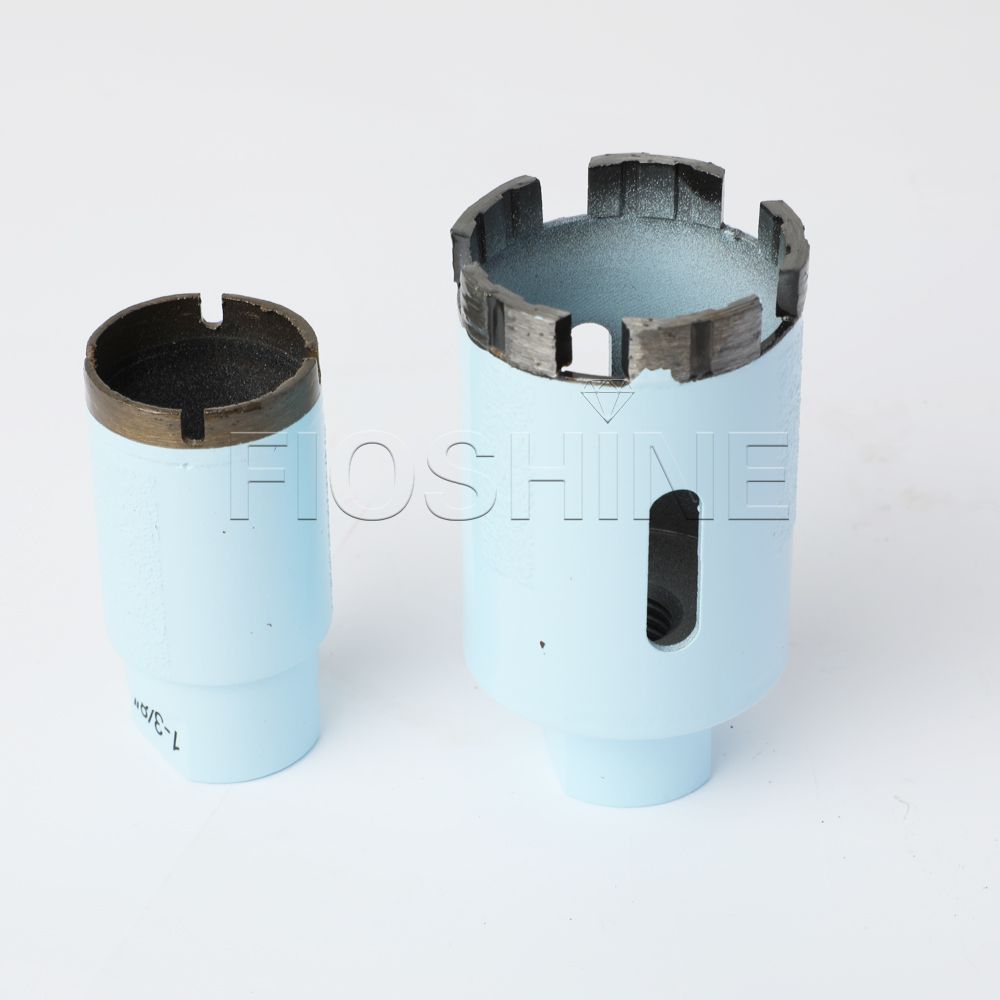

These stone core drill is expertly designed for drilling Marble, Granite, Tile Ceramic, Stone…etc.
Dry or wet use for granite & marble.
Ideal for drilling the faucet mounting holes in granite/quartz/marble countertop&floors.
Provide a fast, stable and smooth drilling
Laser welded technology avoids segments off when dry working.
Vacuum brazed side protection offers clean cut & steel core protection.
Suitable for angle grinders.
Advantages&Features
Super thin segments provide fast, stable, smooth drilling.
High quality iamond segments provide a fast speed and excellent longevity.
Vacuum brazed side protection offers clean cut & steel core protection.
Ideal for drilling the faucet mounting holes in tile/ceramic/porcelain
Application:
Drill Holes In Tile/Ceramic/Porcelain Countertop & Floors
Fit Onto All Brands Angle Grinders
Product Parameter
| Item No. | Diameter | Segment Height | Segment Thickness | Connection | Total Length |
| FSDST025 | 25mm | 7mm | 2.0mm | 5/8"-11/ M14/M16 | 70mm/Customized |
| FSDST030 | 30mm | 7mm | 2.0mm | 5/8"-11/ M14/M16 | 70mm/Customized |
| FSDST032 | 32mm | 7mm | 2.0mm | 5/8"-11/ M14/M16 | 70mm/Customized |
| FSDST035 | 35mm | 7mm | 2.0mm | 5/8"-11/ M14/M16 | 70mm/Customized |
| FSDST038 | 38mm | 7mm | 2.0mm | 5/8"-11/ M14/M16 | 70mm/Customized |
| FSDST040 | 40mm | 7mm | 2.0mm | 5/8"-11/ M14/M16 | 70mm/Customized |
| FSDST044 | 44mm | 7mm | 2.0mm | 5/8"-11/ M14/M16 | 70mm/Customized |
| FSDST051 | 51mm | 7mm | 2.0mm | 5/8"-11/ M14/M16 | 70mm/Customized |
| FSDST056 | 56mm | 7mm | 2.0mm | 5/8"-11/ M14/M16 | 70mm/Customized |
| FSDST063 | 63mm | 7mm | 2.0mm | 5/8"-11/ M14/M16 | 70mm/Customized |
| FSDST076 | 76mm | 7mm | 2.0mm | 5/8"-11/ M14/M16 | 70mm/Customized |
| FSDST083 | 83mm | 7mm | 2.0mm | 5/8"-11/ M14/M16 | 70mm/Customized |
| FSDST089 | 89mm | 7mm | 2.0mm | 5/8"-11/ M14/M16 | 70mm/Customized |
| FSDST102 | 102mm | 7mm | 2.0mm | 5/8"-11/ M14/M16 | 70mm/Customized |
