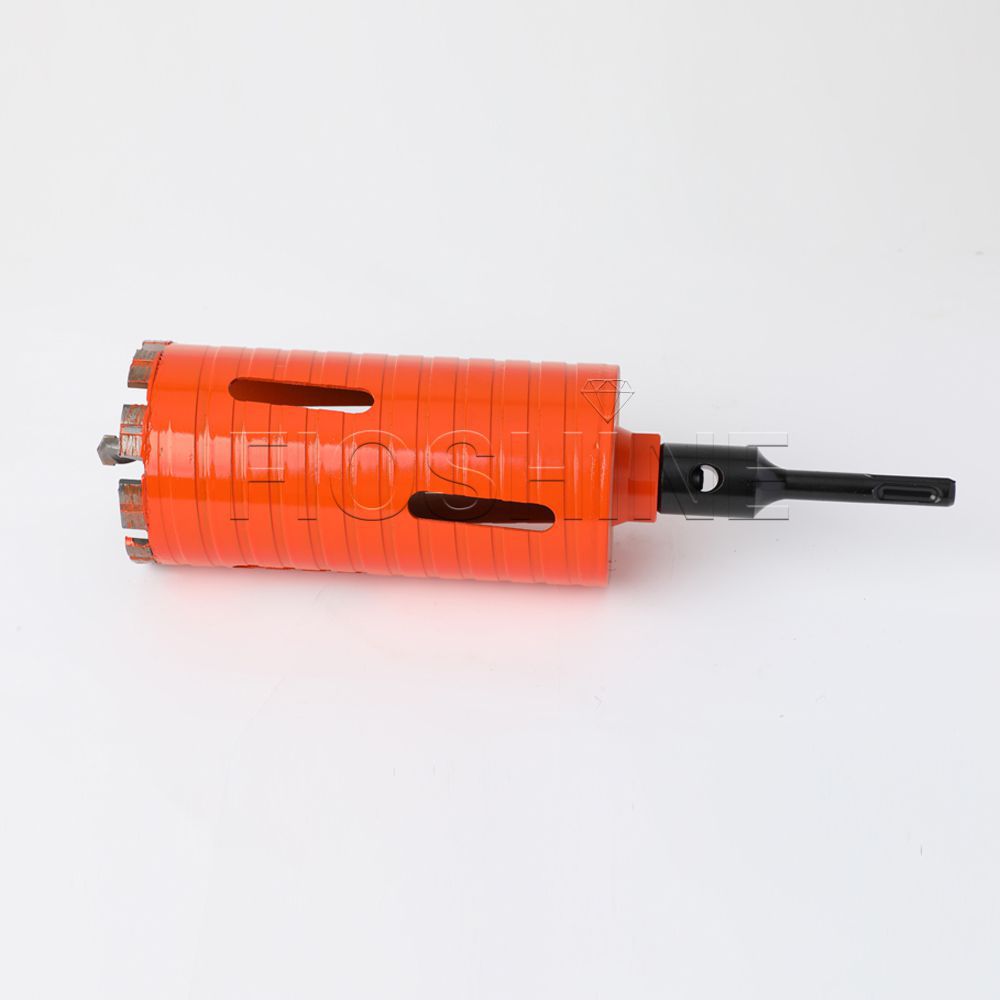

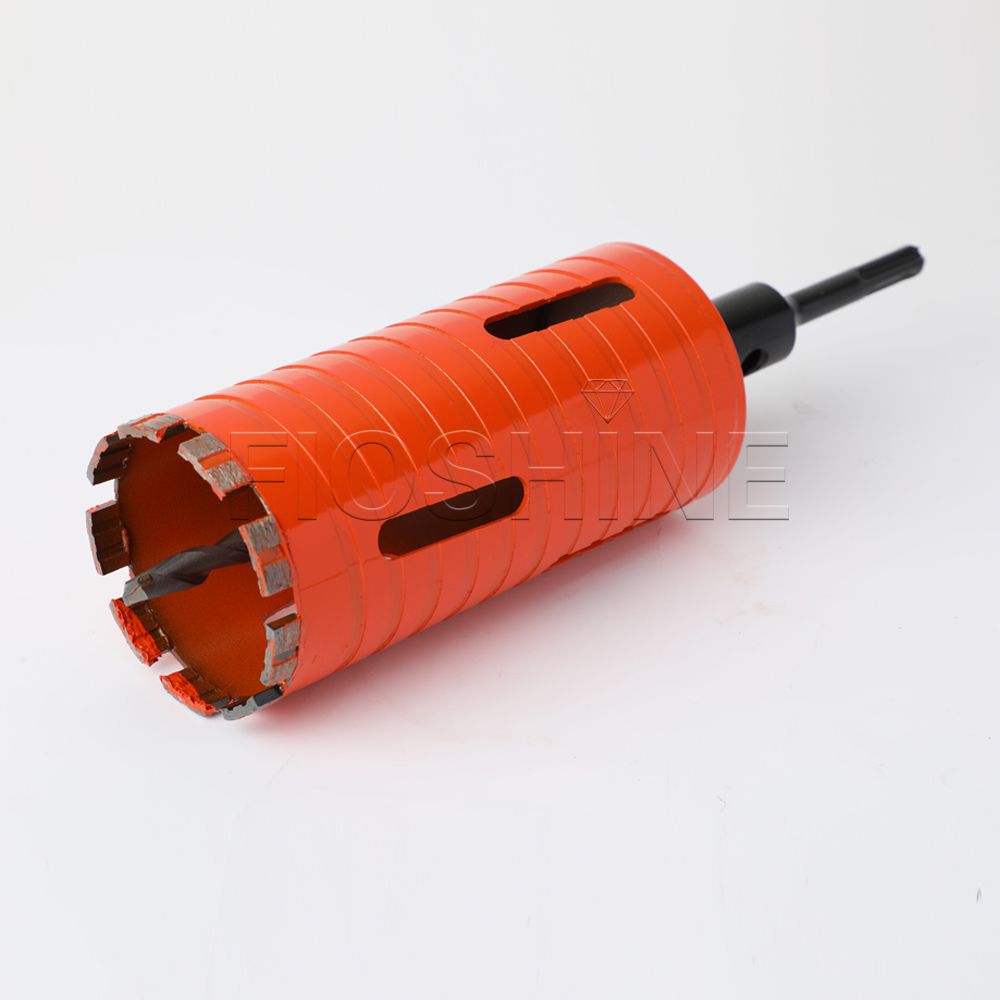

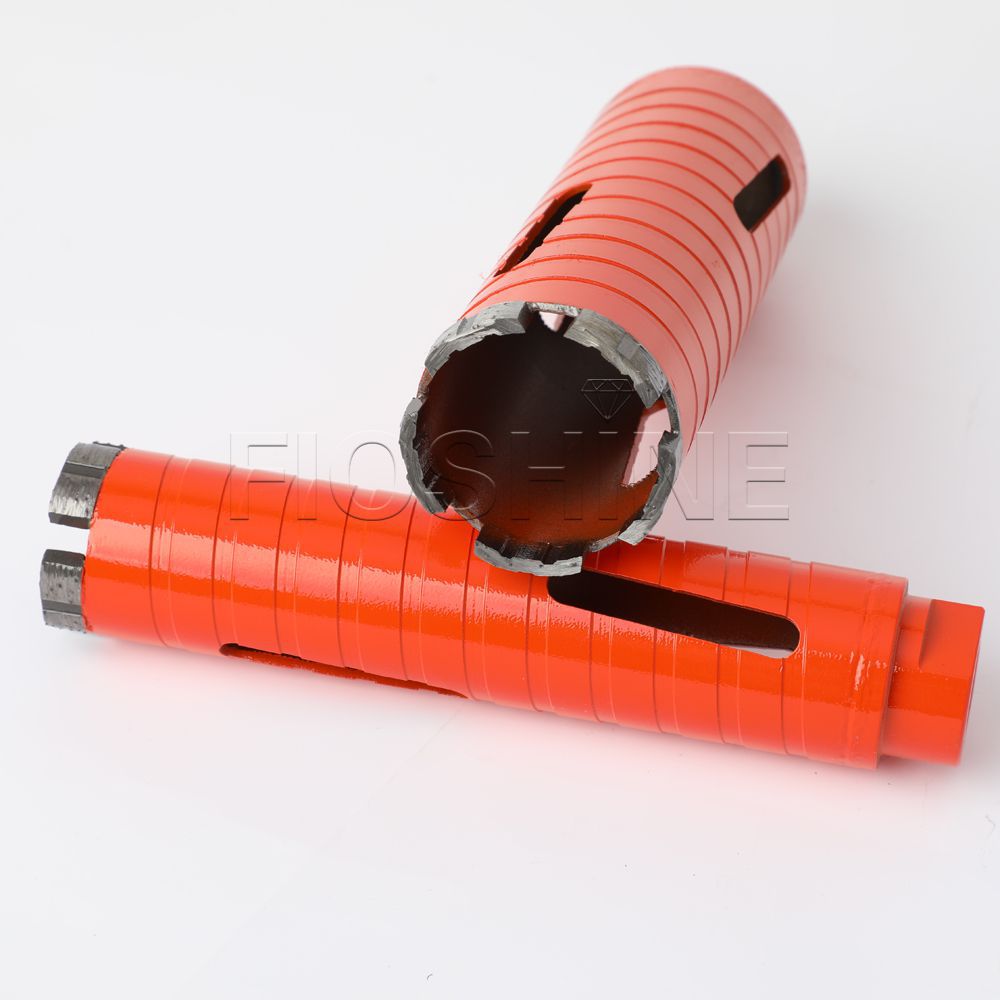

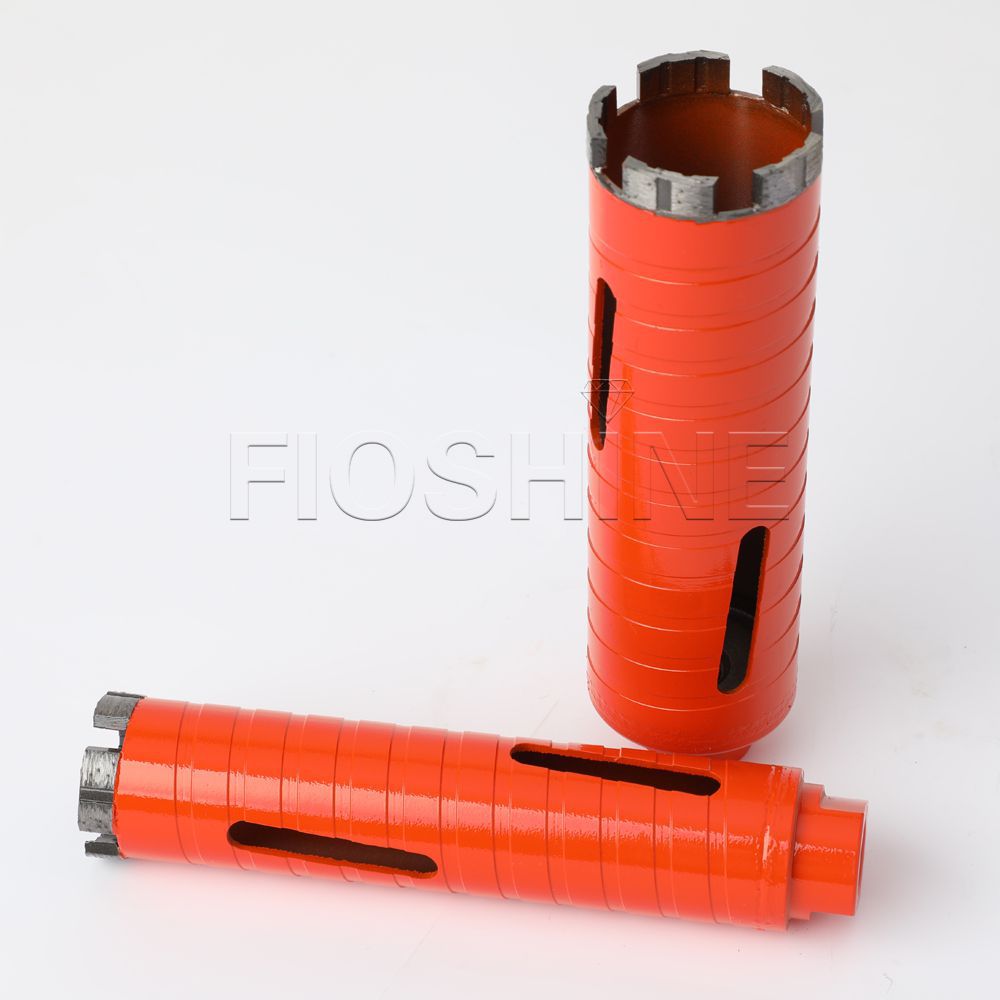

Dry diamond core drill bits, using the highest grade diamonds, are designed to be used on concrete, brick, block, and other masonry materials.
The tubes of the diamond core drill bits are slotted to aid in both cooling of the core bit and removal of the cuttings, allowing for fast, clean drilling of holes without the need for water.
The large slots facilitate cooling of the bit as well as extracting the cores.
The thinner wall provides increased drilling speed.
Available in sizes 1" - 6" with 150mm working length
Advantages&Features
Laser welding technology ensures highest security.
High quality diamonds provide fast and long lasting drilling
Great for dry drilling concrete, bricks, blocks and masonry.
The large slots facilitate cooling of the bit as well as extracting the cores.
Dry use
Application
Dry Drill Concrete, Reinforced Concrete, Bricks, Blocks &Masonry Materials.
Fit Onto Handheld Core Drill & Core Drill Stand
Product Parameter
| Item No. | Diameter | Segment Height | Connection | Working Length |
| FSDLD025 | 25mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD032 | 32mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD035 | 35mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD038 | 38mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD042 | 42mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD051 | 51mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD056 | 56mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD063 | 63mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD076 | 76mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD082 | 82mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD089 | 89mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD102 | 102mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD108 | 108mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD112 | 112mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD127 | 127mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD132 | 132mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD142 | 142mm | 9mm | M16/ 5/8"-11 | 150mm |
| FSDLD152 | 152mm | 9mm | M16/ 5/8"-11 | 150mm |
