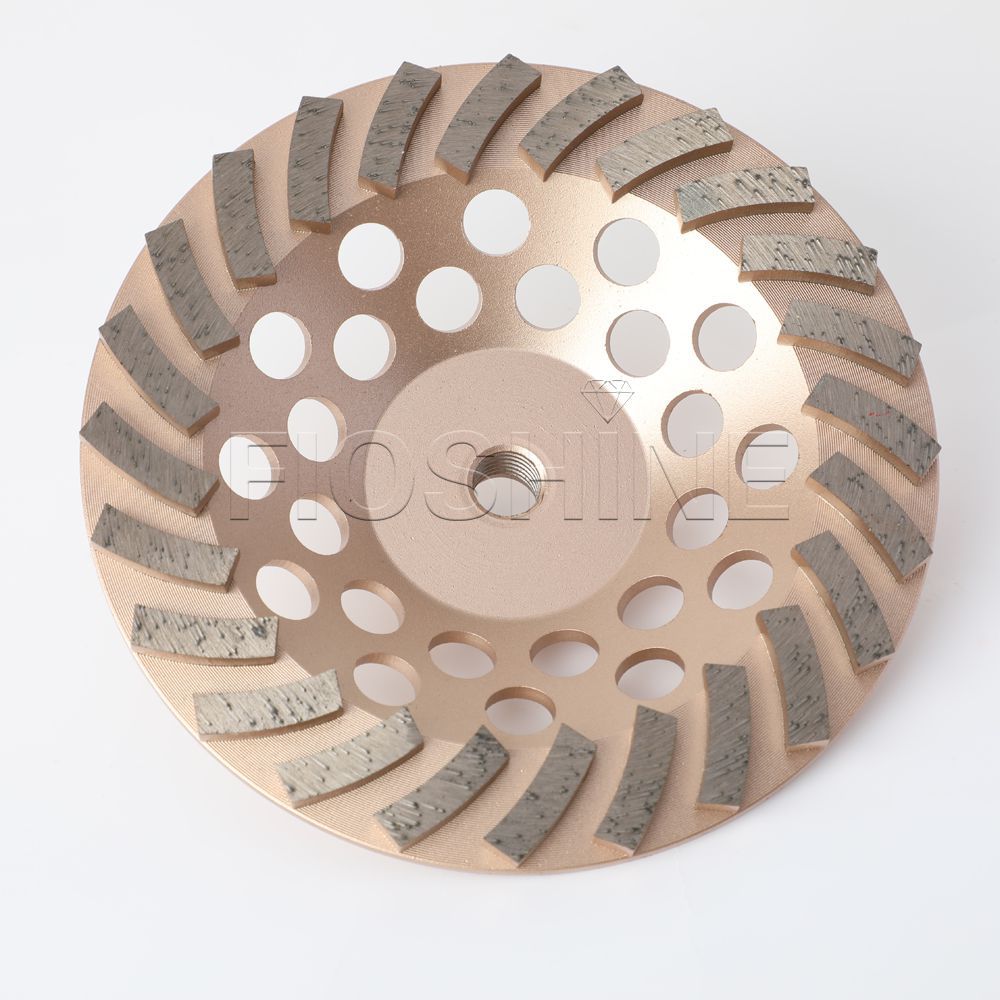

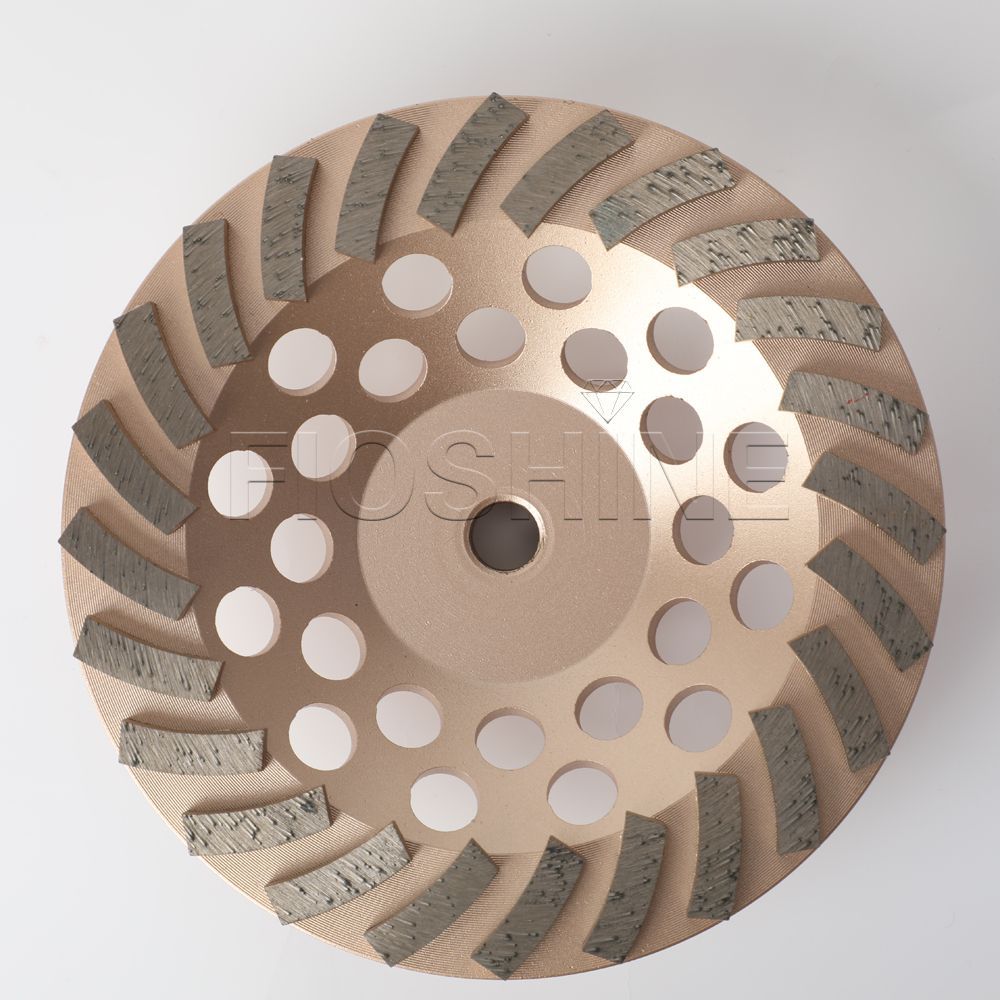

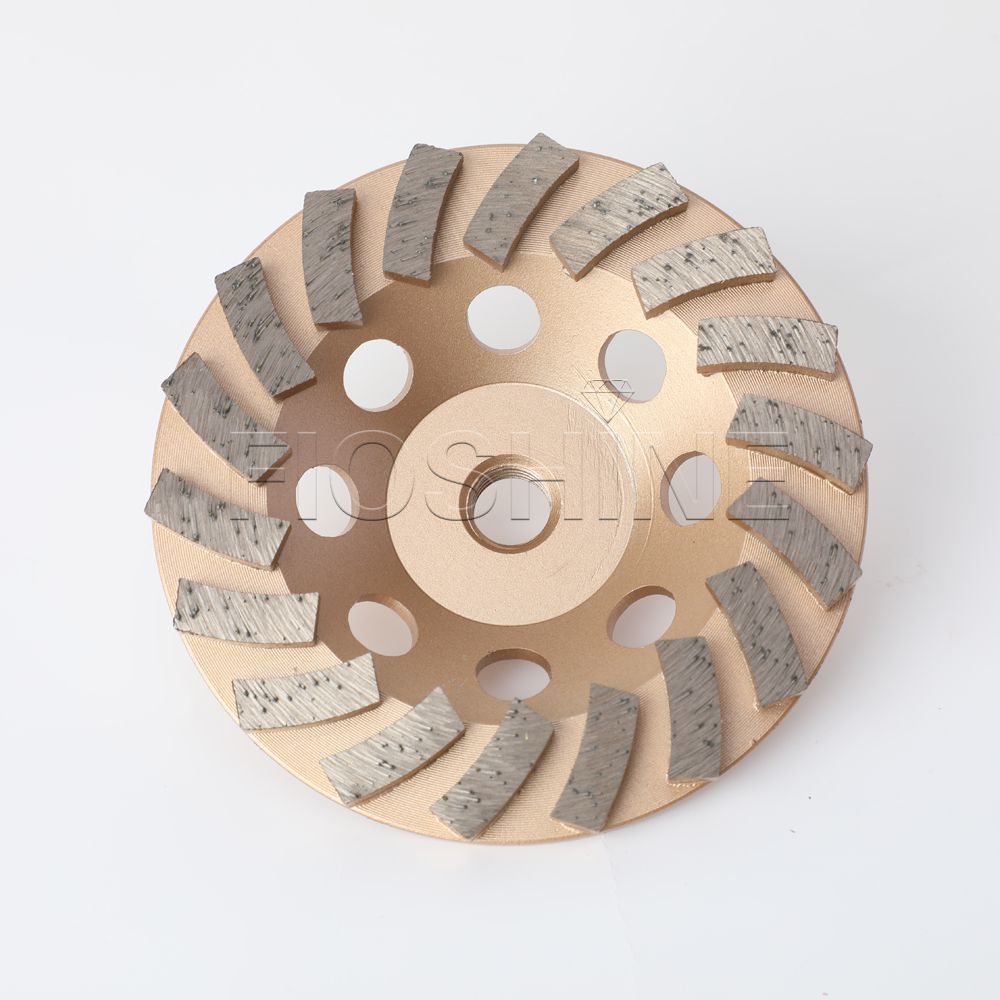

Turbo diamond grinding cup wheel is for grinding all types of concrete, masonry, stones and other hard abrasive surfaces.
Achieve more aggressively grinding and smoother finishes than single or double row wheels.

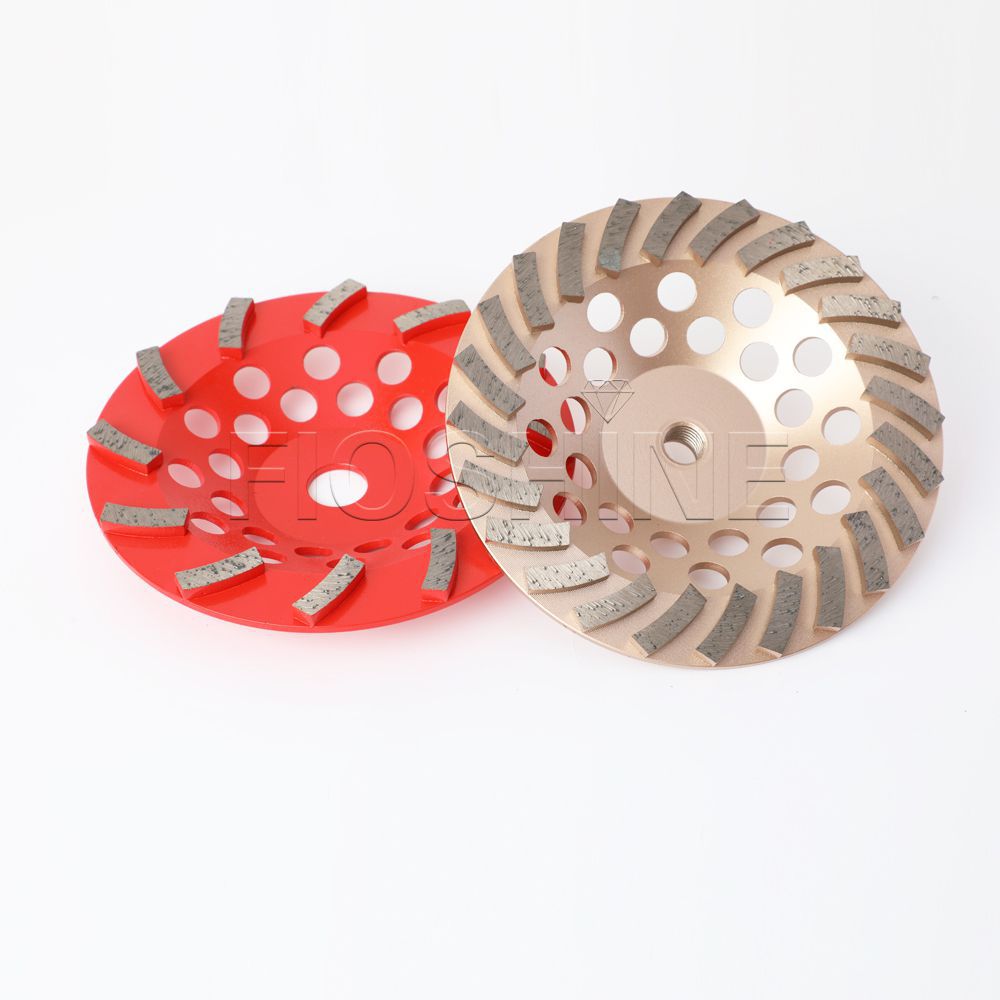

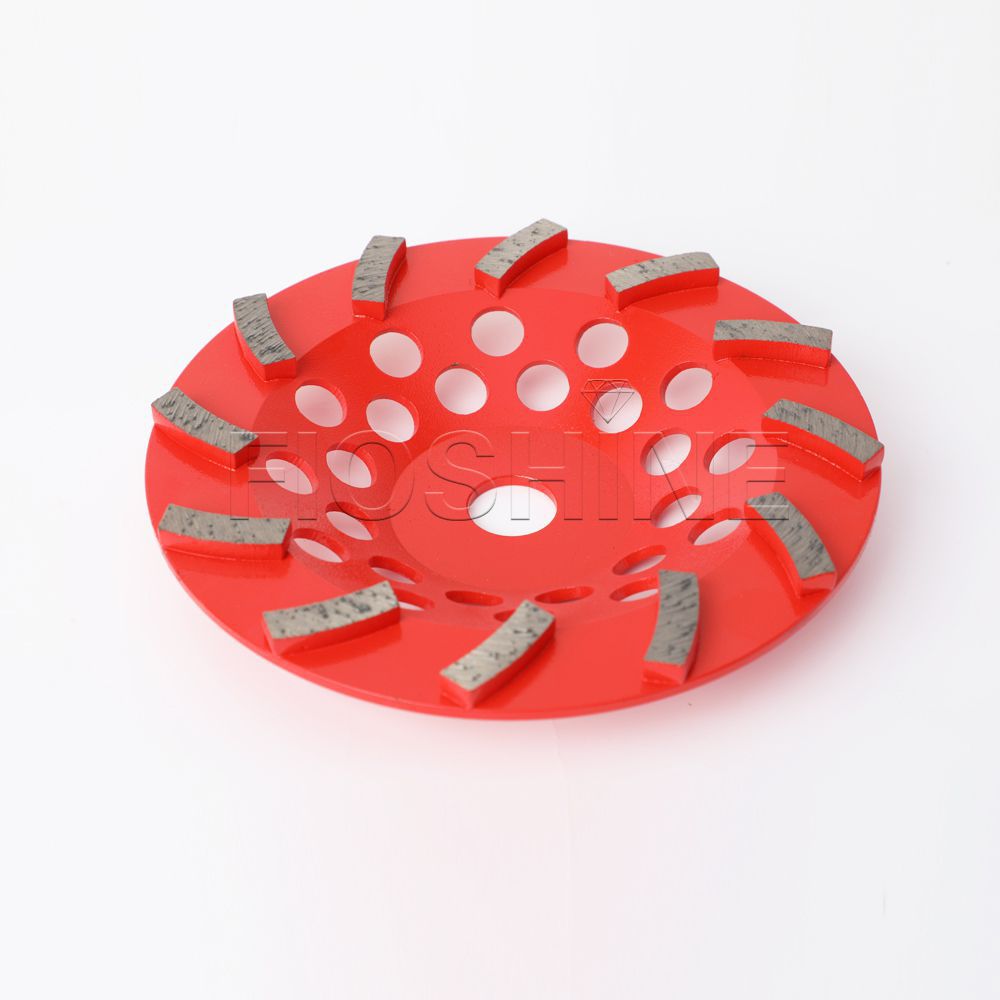

Two options for segments no. of each diameter, for example, you can make 12 segments or 24 segments for 7inch cup wheel.
Fewer segments result in more aggressive stock and coating removal.
More segments bring smoother grinding with longer life.
Advantages&Features
Turbo segments provides more aggressively grinding and smoother, achieving fast grinding and excellent tool life
Two segments no. option for each diameter
Wide application for grinding masonry, concrete, natural stone & terrazzo materials
Idea for removing concrete coating materials including epoxy, urethane & adhesives
Application
Can Grind All Concrete Masonry And Terrazzo Materials
Also A Great Choice For Removing Epoxy, Resin, Adhesive And Other Coatings
Fit Onto All Brands Of Angle Grinders
Product Parameter
| Item No. | Diameters | Segment Height | Segments No. | Arbor |
| FSGWT100 | 4''/100mm | 6mm | 9 | 22.23mm/5/8''-11 |
| FSGWT100 | 4''/100mm | 6mm | 16 | 22.23mm/5/8''-11 |
| FSGWT115 | 4 1/2'' /115mm | 6mm | 9 | 22.23mm/5/8''-11 |
| FSGWT115 | 4 1/2''/125mm | 6mm | 18 | 22.23mm/5/8''-11 |
| FSGWT125 | 5''/125mm | 6mm | 12 | 22.23mm/5/8''-11 |
| FSGWT125 | 5''/125mm | 6mm | 18 | 22.23mm/5/8''-11 |
| FSGWT180 | 7''/180mm | 6mm | 12 | 22.23mm/5/8''-11 |
| FSGWT180 | 7'' /180mm | 6mm | 24 | 22.23mm/5/8''-11 |
