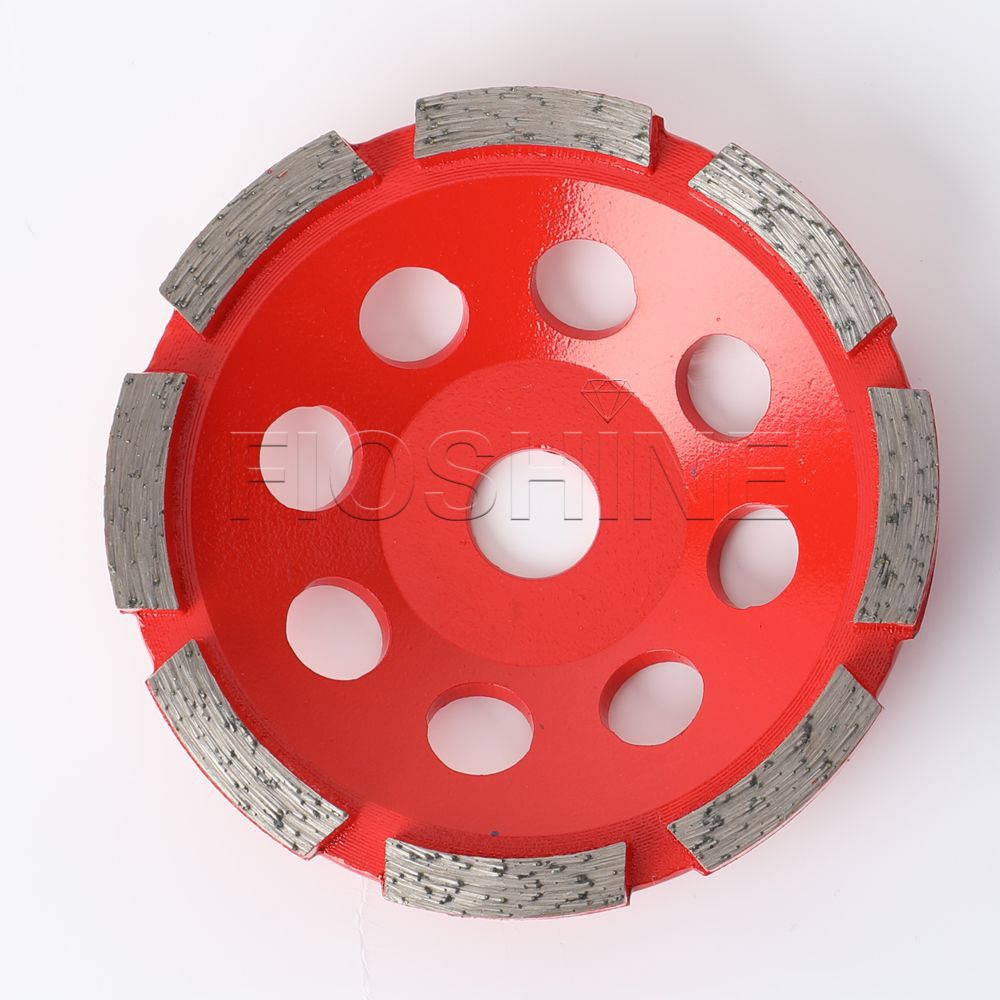

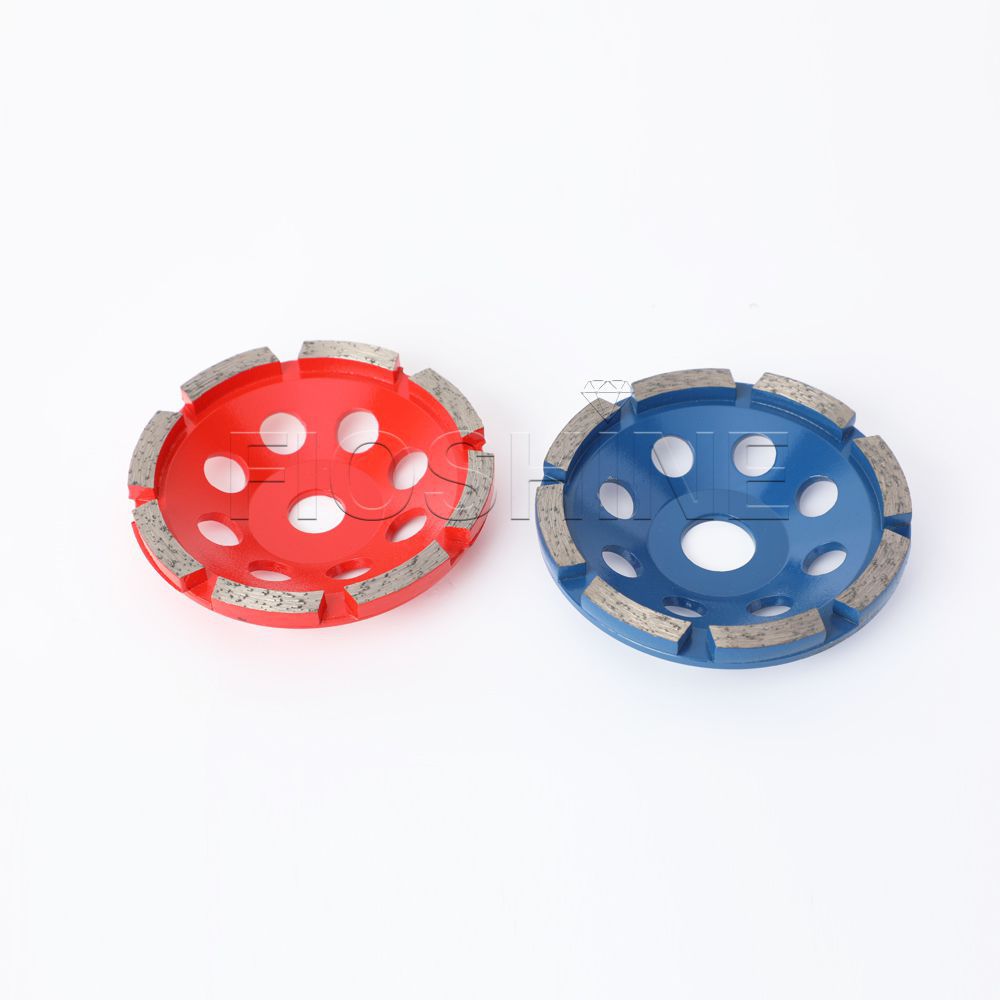

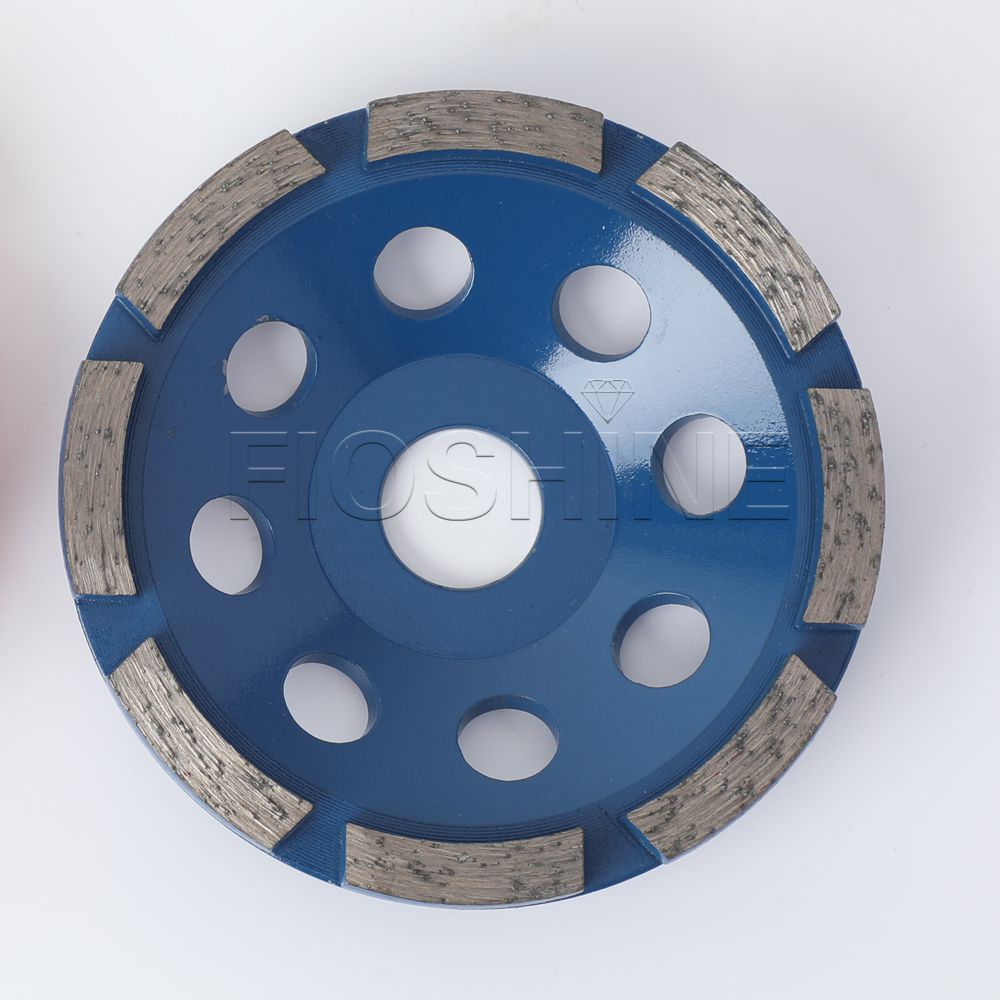

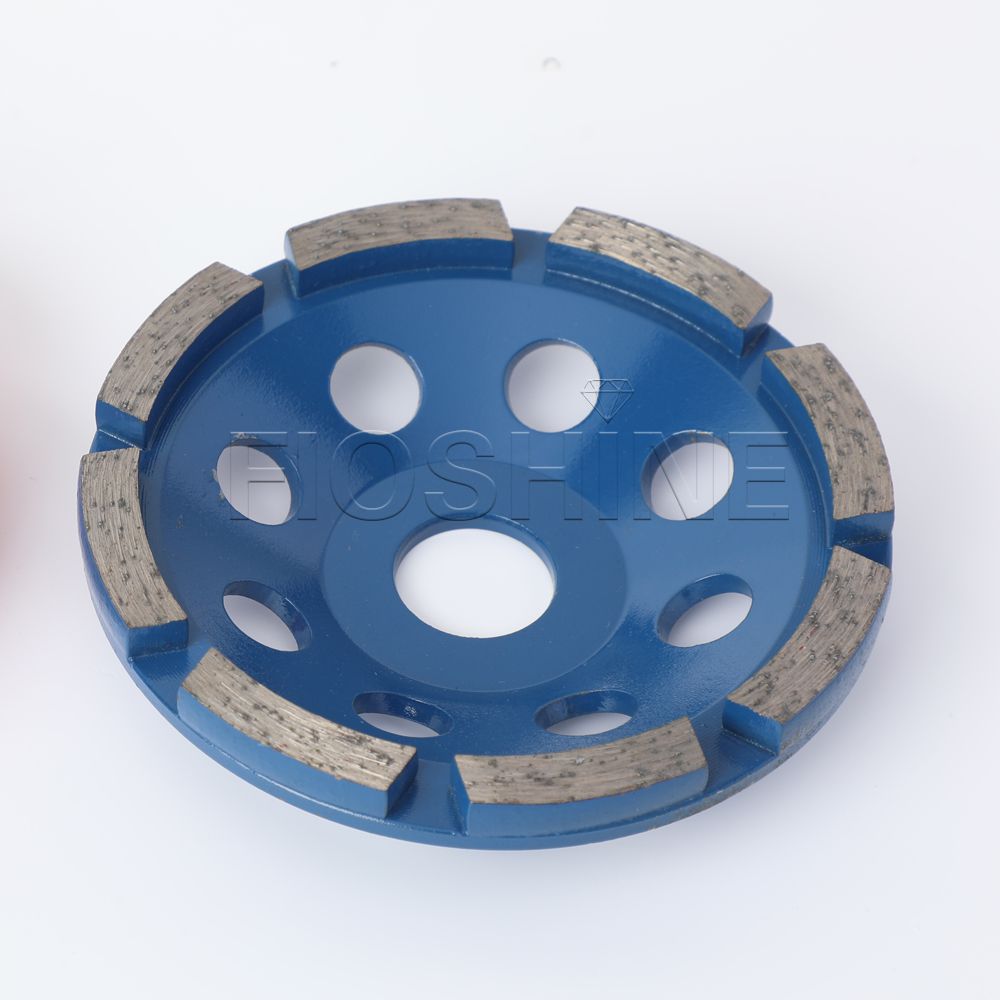

Single row diamond cup wheels are classic style of diamond grinding cup wheel, which are engineered with top grade industrial diamond for maximum grinding performance and superior tool life.
Single row cup wheels have a wide application for grinding varying concrete floors, Terrazzo, stones...etc.
Advantages&Features
Classical single row design
High diamond density for maximum grinding performance and excellent tool life
Different metal bond hardness and different diamond grits available.
Common Applications are for grinding various concrete floors.
Application:
Can Grind All Kinds Concrete Floors, Terrazzo, Stones
Fit Onto All Standard Angle Grinders
Product Parameter
| Item No. | Diameters | Segment Height | Segments No. | Arbor |
| FSGCS100 | 4'' /100mm | 6mm | 7 | 22.23mm/5/8''-11 |
| FSGCS115 | 4 1/2''/ 115mm | 6mm | 8 | 22.23mm/5/8''-11 |
| FSGCS125 | 5''/125mm | 6mm | 9 | 22.23mm/5/8''-11 |
| FSGCS150 | 6''/150mm | 6mm | 10 | 22.23mm/5/8''-11 |
| FSGCS180 | 7''/180mm | 6mm | 12 | 22.23mm/5/8''-11 |
